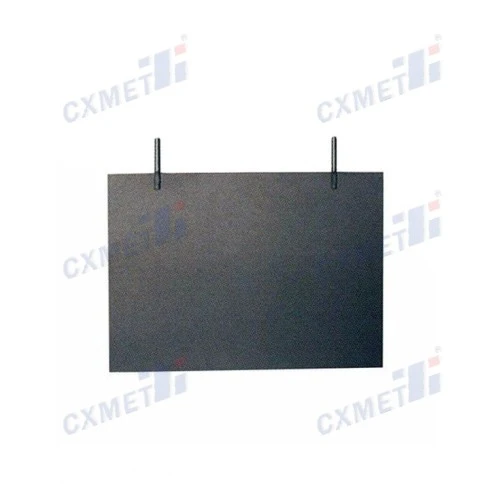

Titanium Anode for Electrophoretic Coating

Name: China Customized Titanium Anode for Electrophoretic Coating Manufacturers Suppliers Factory - CXMET
Brand: CXMET
SKU: 313082254

Type: Electrocoating of car bodies
Material:gr1 titanium plate
Regular size:2x350xLMM,2X360XLMM,2X400XLMM
Material Coating: Iridium Oxide
Coating content: about 12g/m2
Coating area: Single-sided coating

Send Inquiry

What Is Titanium Anode For Electrophoretic Coating?

Titanium anodes are commonly used in electrophoretic coating processes, a type of electrochemical deposition process. During electrophoretic coating, the anode is used to attract negatively charged particles to the surface of a substrate. The negatively charged particles are then suspended in a coating solution and drawn to the anode, where they are deposited on the substrate. It is a popular choice in electrophoretic coating processes because it is corrosion resistant, has a low electrical resistance, and is relatively inexpensive.

Parameter Requirements

Automotive coating technology: Titanium anode systems in cathodic electrophoresis

Cathodic electrophoresis is a coating process commonly used in car body manufacturing, and it is the main means to improve the service life (corrosion resistance) of the car body. In cathodic electrophoresis, the electrophoretic paint used is cationic (positively charged) resin and pigment paste, and the coated object (body) is used as the cathode. The initial reaction at the cathode is the electrolysis of water to form hydrogen and hydroxide ions (OH-), this reaction results in an over-based interfacial layer on the cathode surface, allowing positively charged particles to agglomerate on the cathode, cations (resins and pigments) ) reacts with hydroxide ions (OH-) to produce coating deposition.

Organic acids are continuously produced in the anode zone:

If these acids are not removed in time, they will enter the bath to reduce the pH value, affect the stability of the process parameters, affect the penetrability and coating performance, and increase the resolubility. There are two ways to remove free acid from the bath: adding an unneutralized or partially neutralized cathodic electrocoat and using an anode diaphragm system. The anode diaphragm system method is generally used, especially in large cathodic electrophoretic coating lines.
